INOUT - Rugged & Reliable with Rapid delivery LCD Touchscreen module

Rugged & Reliable

with Rapid delivery

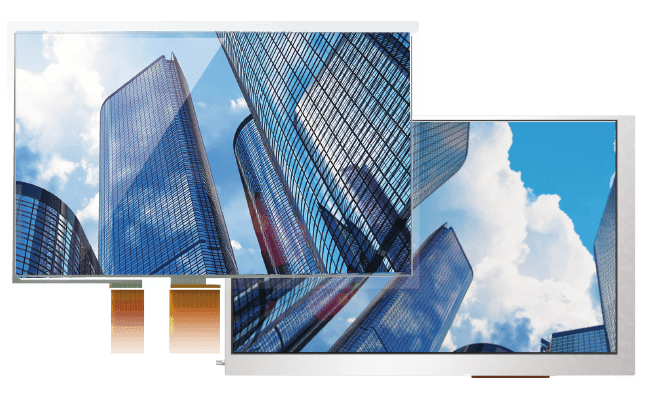

LCD TOUCHSCREEN MODULE

INOUT

When conditions are tough, your technology should be tougher.

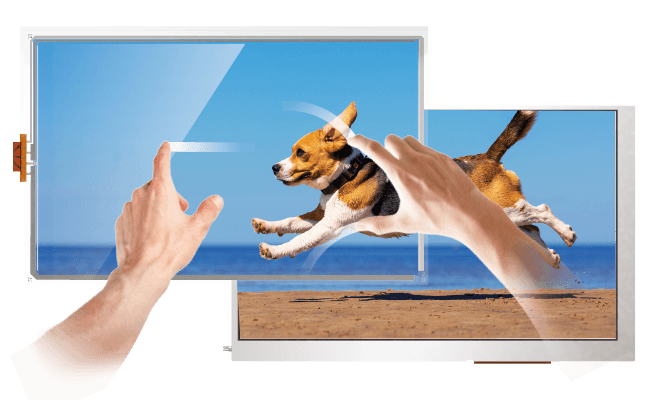

The INOUT Series delivers precise multi-touch control, even with gloves, water, and direct sunlight. Increase user productivity, device accuracy, and operational safety in any environment.

Built for Confidence. Delivered with Speed. Simplify your HMI.

DMC guarantees Human Machine Interface (HMI) quality and supply.

Why INOUT?

Fast, Stable Supply: No long lead times or unpredictable imports.
Low Minimums: Order from just 1 unit.
Made for Harsh Environments: Engineered for performance in tough industrial conditions.

Trusted Touch from DMC

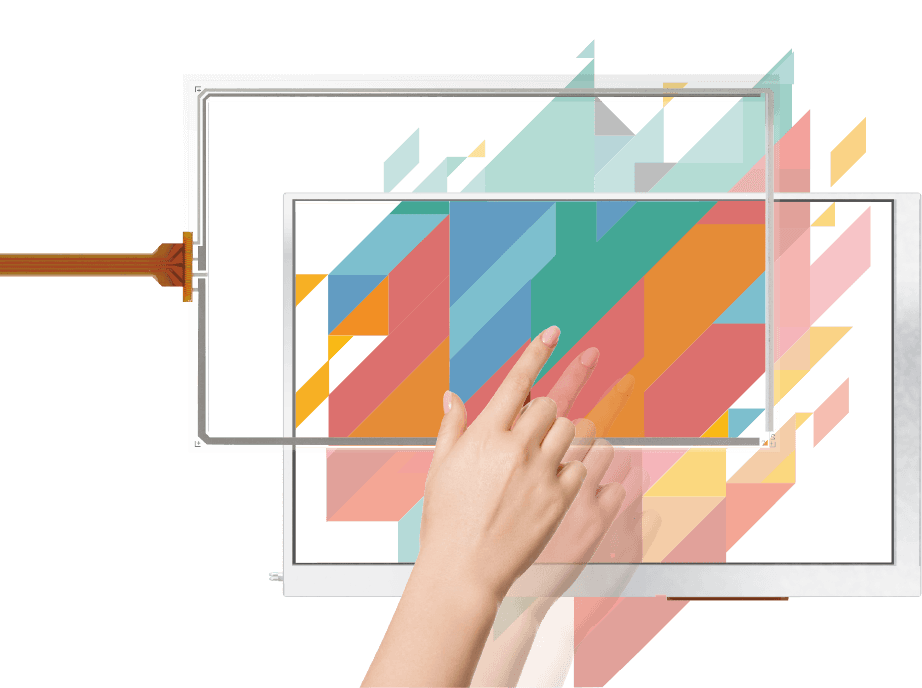

Built to perform in the toughest environments, DMC's touch sensors support both resistive and capacitive technologies, with four product types tailored by size and application.

Touchscreens are essential to contemporary equipment interfaces. In industrial, medical, and outdoor environments where temperature shifts, vibration, and dust are common, performance and durability are non-negotiable.

Firmware customization is available to meet specific customer needs, such as increasing noise filters, adjusting sensitivity for gloved operation, or enabling palm rejection.

With over 30 years of engineering experience, DMC is a market leader in touch technology—especially for industrial equipment. We deliver proven quality and innovation you can count on.

Capacitive

Glass/Film/Film Structure

Capacitive

Glass/Glass Structure

Resistive

Film/Glass Structure

Resistive

Glass/Glass Structure

The choice is yours depending on your application

- Features of 4 selectable sensors

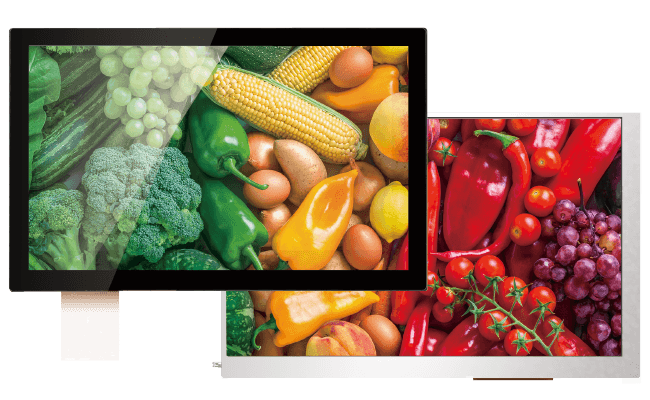

Capacitive

Glass/Film/Film Structure

Structure

Light

Thin

Beautiful &
Clear View

Slim, lightweight design with bright clarity. Ideal for indoor kiosks and signage.

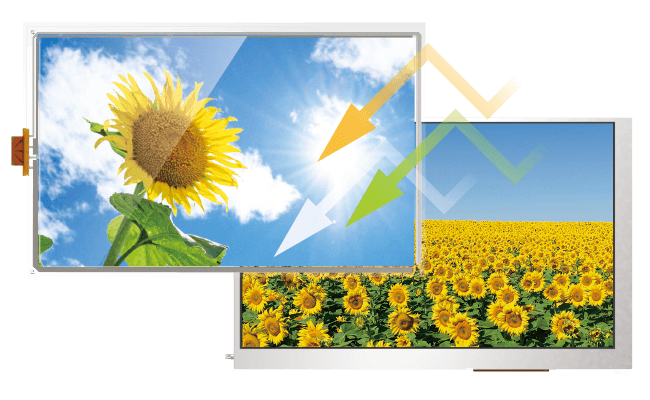

Capacitive

Glass/Glass Structure

Glass + UV absorbing structure

Robust/Safe for outdoor use

Clear transparency

Ideal for Outdoor

Rugged, sunlight-readable, and UV-resistant. Perfect for outdoor applications.

Resistive

Film/Glass Structure

Light and smooth touch

Noise resistance/Light touch feeling operations

Gesture operations

Light-Touch
Ease of Use

Responsive with light-touch gesture support. Use any input device - no noise concerns.

Resistive

Glass/Glass Structure

Structure suitable for outdoor installation

Noise resistance/Safe for outdoor use

Clear transparency

Resistant to
Damages

Highly durable and noise-resistant. Built for extreme reliability outdoors.

Case study by touchscreen type

- Applications in Action

Capacitive

Glass/Film/Film
Structure

Restaurant ordering tablet

Information signage

Capacitive

Glass/Glass
Structure

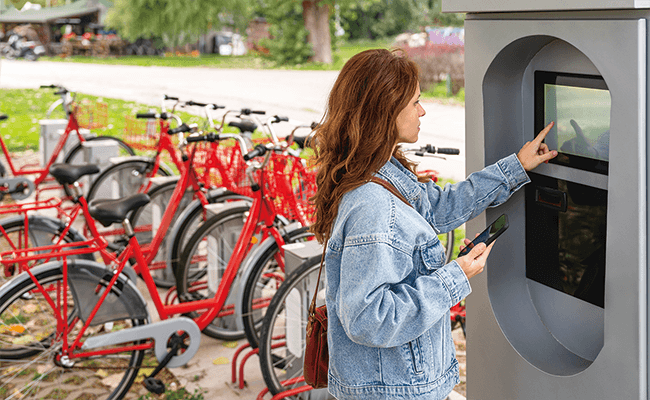

Bicycle rental kiosk

Gas (petrol) station

Resistive

Film/Glass
Structure

Digital Gaming

Karaoke tablets

Resistive

Glass/Glass
Structure

Dental systems

MedTech & X-ray

Various

- Options

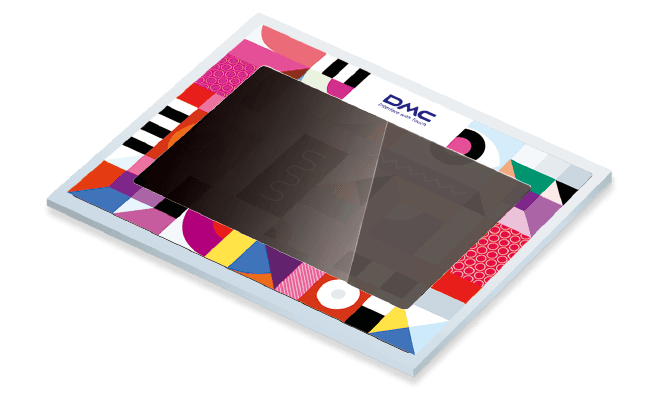

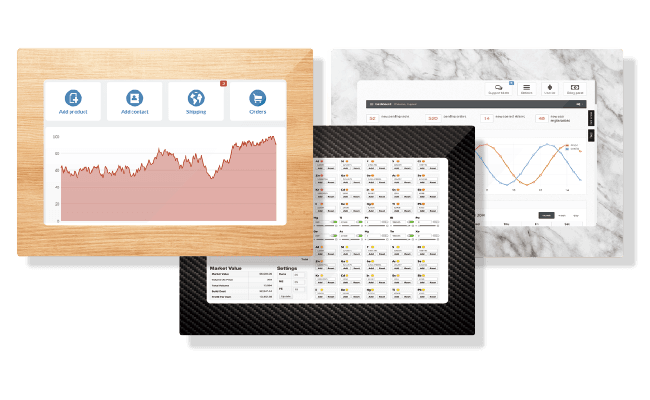

Cover glass solution
(Capacitive only)

Custom print designs, anti-glare, and anti-fingerprint finishes available for any design/size/thickness.

Custom Options Available Lot size ~100 units

Material: Normal/Strengthened

Surface treatment: Clear /AG+AF/AR+AF/AF

Thickness: 1.1mm/1.8mm

Corner processing: R (radius) processing

End surface treatment: thread chamfering

Size: Can be specified

Print color: Single color/2 colors/3 colors

Electronic data submission: Yes

Assembly methods etc…

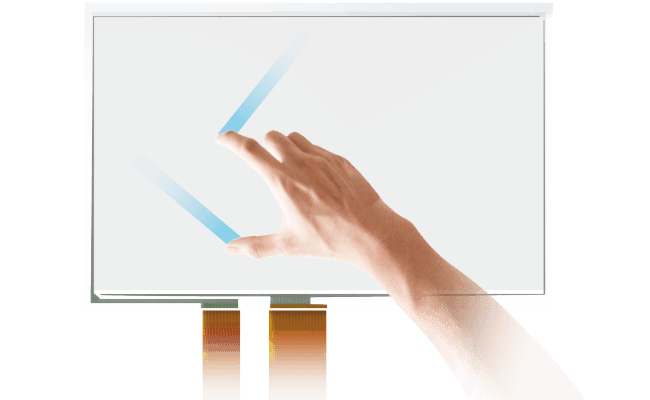

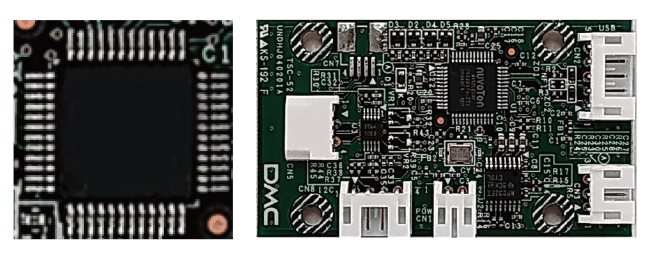

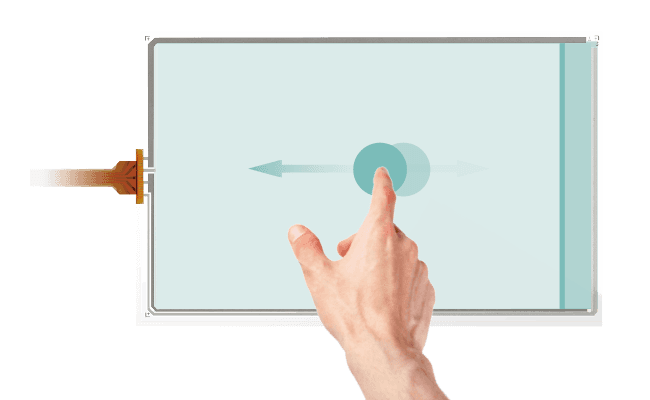

Resistive touch controller

DMC's resistive touch controller

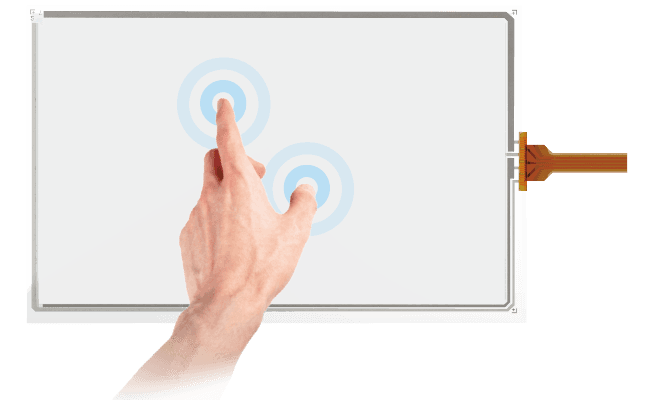

allows gesture control using two fingers

Flick

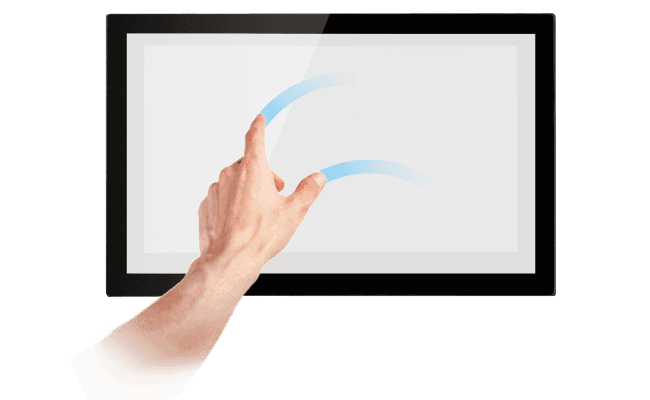

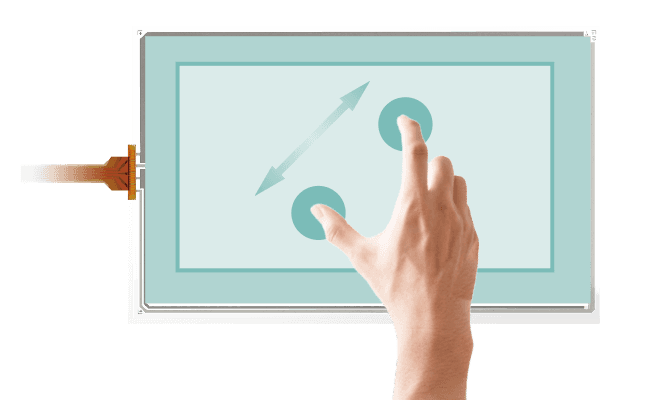

Pinch: In and Out

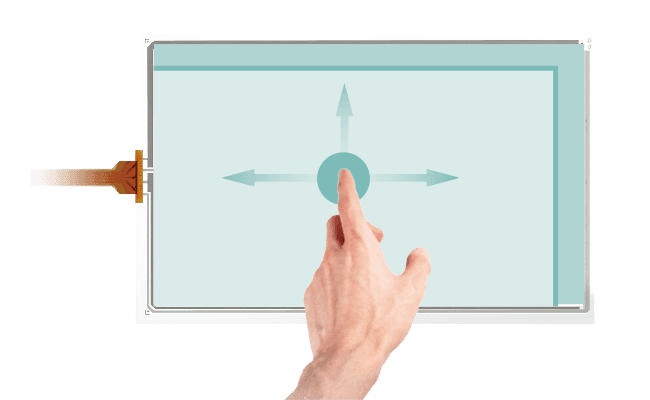

Pan

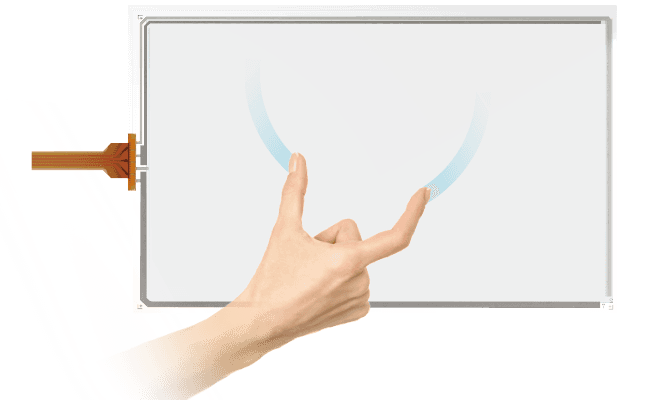

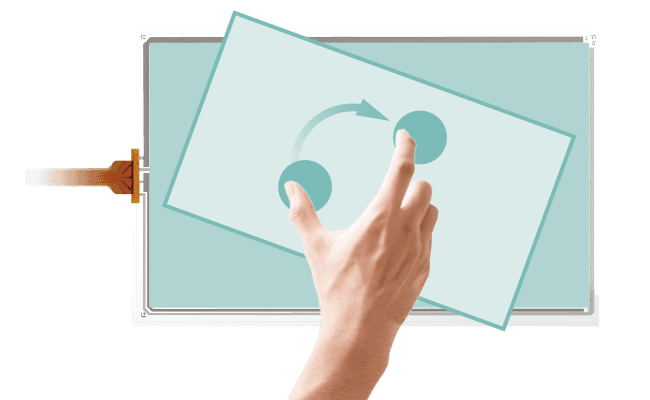

Rotate

Smartphone-like operation
even with resistive touch panels.

DMC's proprietary technology in an advanced resistive touch controller enables pinch, flick, rotate, and pan. Choice of IC or board.

Spec

- Specifications

LCD Spec

DRAG TO LEFT

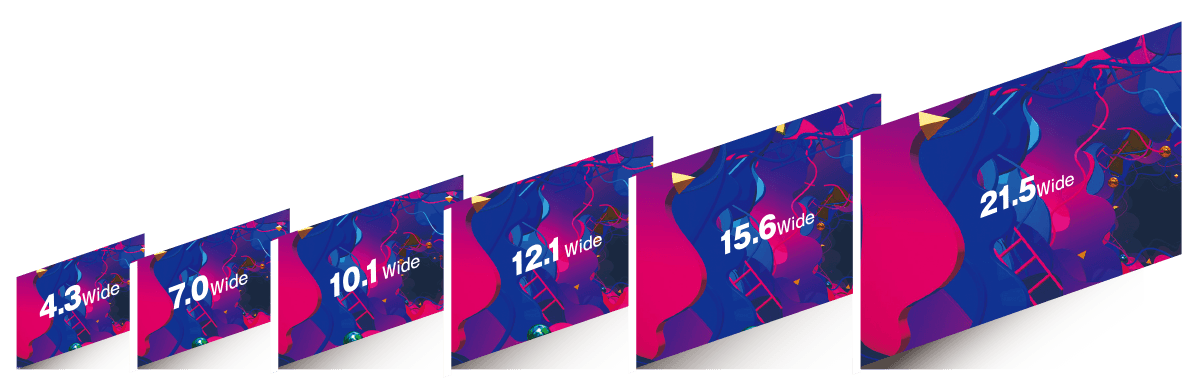

Size	Dot-Comp. (H x V dot)	Active Area (W x H mm)	Pixel Pitch (W x H mm)	Number of colors	View Angle (V/H)	Backlight System/Driver	Backlight Life (Typ.)	LCD I/F
4.3w	480 x 272 (R,G,B)	95.04 x 53.86	0.198 x 0.198	16.7M (Color 8bit)	-80～80/ -80～80	LED/Not Installed	50,000h	CMOS 3.3V Parallel
7w	1024 x 600 (R,G,B)	154.21 x 85.92	0.1506 x 0.1432	16.7M (Color 8bit)	-80～80/ -80～80	LED/Installed	50,000h	LVDS
10.1w	1024 x 600 (R,G,B)	222.72 x 125.28	0.2175 x 0.2088	16.7M (Color 8bit)	-85～85/ -85～85	LED/Installed	50,000h	LVDS
12.1w	1280 x 800 (R,G,B)	261.12 x 163.2	0.204 x 0.204	16.7M (Color 8bit)	-80～80/ -80～80	LED/Installed	50,000h	LVDS
15.6w	1920 x 1080 (R,G,B)	344.16 x 193.59	0.179 x 0.179	16.7M (Color 8bit)	-89～89/ -89～89	LED/Installed	50,000h	LVDS (Dual channel)
21.5w	1920 x 1080 (R,G,B)	476.064 x 267.786	0.248 x 0.248	16.7M (Color 8bit)	-89～89/ -89～89	LED/Installed	50,000h	LVDS (Dual channel)

Specifications for each model

DRAG TO LEFT

Size	Model	Touch- screen *1	Brightness	Controller I/F	touch points/ Continuous striking life	Ambient temp. /for storage	Dimensions (H x V x Dmm)	Weight
4.3w	TK-SPA043WQ-101	PCAP G/F/F	500cd/㎡	USB/I2C	10 point/ 5,000M times	-20 ～ 70℃/ -30 ～ 80℃	119 x 81 x 5.16	T.B.D./ T.B.D.
4.3w	TK-SRA043WQ-101	Resistive F/G	460cd/㎡	Controller Sold Separately	1 point/ 1,00M times	-20 ～ 70℃/ -30 ～ 80℃	105.4 x 67.1 x 3.9	T.B.D./ T.B.D.
7w	TK-SPA07BWS-111	PCAP G/F/F	440cd/㎡	USB/I2C	10 point/ T.B.D.	-20 ～ 70℃/ -30 ～ 80℃	186 x 118 x 11.94	T.B.D./ T.B.D.
7w	TK-SPA07BWS-101	PCAP G/G	430cd/㎡	USB/UART (3.3V)/Serial	5 point/ 5,000M times	-30 ～ 80℃/ -30 ～ 80℃	166 x 108 x 12.39	T.B.D./ T.B.D.
7w	TK-SRA07BWS-101	Resistive F/G	390cd/㎡	Controller Sold Separately	1 point/ 1,000M times (Gesture Comp.)	-20 ～ 80℃/ -30 ～ 80℃	167.75 x 100 x 11.44	T.B.D./ T.B.D.
10.1w	TK-SPA101WS-111	PCAP G/F/F	440cd/㎡	USB/I2C	10 point/ 5,000M times	-20 ～ 70℃/ -30 ～ 80℃	255 x 161 x 8.53	T.B.D./ T.B.D.
10.1w	TK-SPA101WS-101	PCAP G/G	430cd/㎡	USB/UART (3.3V)/Serial	5 point/ 5,000M times	-20 ～ 70℃/ -30 ～ 80℃	236.5 x 143 x 8.91	T.B.D./ T.B.D.
10.1w	TK-SRA101WS-101	Resistive F/G	390cd/㎡	Controller Sold Separately	1 point/ 1,000M times (Gesture Comp.)	-20 ～ 70℃/ -30 ～ 80℃	235 x 143 x 8.66	T.B.D./ T.B.D.
12.1w	TK-SPA121WX-111	PCAP G/F/F	350cd/㎡	USB/I2C	10 point/ T.B.D.	-20 ～ 70℃/ -20 ～ 70℃	296 x 202 x 12.13	T.B.D./ T.B.D.
12.1w	TK-SPA121WX-101	PCAP G/G	340cd/㎡	USB/UART (3.3V)/Serial	5 point/ 5,000M times	-20 ～ 70℃/ -20 ～ 70℃	278 x 184 x 12.51	T.B.D./ T.B.D.
12.1w	TK-SRA121WX-101	Resistive F/G	310cd/㎡	Controller Sold Separately	1 point/ 1,000M times (Gesture Comp.)	-20 ～ 70℃/ -20 ～ 70℃	278.4 x 180.7 x 12.26	T.B.D./ T.B.D.
15.6w	TK-SPA156FH-111	PCAP G/F/F	400cd/㎡	USB/I2C	10 point/ 5,000M times	-20 ～ 70℃/ -30 ～ 80℃	386.2 x 244 x 12.13	T.B.D./ T.B.D.
15.6w	TK-SPA156FH-101	PCAP G/G	390cd/㎡	USB/UART (3.3V)/Serial	5 point/ 5,000M times	-20 ～ 70℃/ -30 ～ 80℃	363.8 x 215.9 x 11.81	T.B.D./ T.B.D.
15.6w	TK-SRA156FH-101	Resistive F/G	350cd/㎡	Controller Sold Separately	1 point/ 1,000M times (Gesture Comp.)	-20 ～ 70℃/ -30 ～ 80℃	363.8 x 215.9 x 11.56	T.B.D./ T.B.D.
21.5w	TK-SPA215FH-111	PCAP G/F/F	350cd/㎡	USB/I2C	10 point/ 5,000M times	0 ～ 60℃/ -20 ～ 60℃	523 x 321 x 16.35	T.B.D./ T.B.D.
21.5w	TK-SPA215FH-101	PCAP G/G	340cd/㎡	USB/UART (3.3V)/Serial	5 point/ 5,000M times	0 ～ 60℃/ -20 ～ 60℃	497.6 x 287 x 16.03	T.B.D./ T.B.D.
21.5w	TK-SRA215FH-101	Resistive F/G	310cd/㎡	Controller Sold Separately	1 point/ 1,000M times (Gesture Comp.)	0 ～ 60℃/ -20 ～ 60℃	500 x 293.2 x 15.78	T.B.D./ T.B.D.

*1 “G/F/F”: glass/film/film (1 layer of glass/2 layers of film) “F/G”: film/glass (1 layer of film/1 layer of glass) “G/G”: glass/glass (2 layers of glass)
